About Cardan shaft

Supreme Engineers Cardan Shaft are engineered to excel in a wide range of applications, providing flexible and reliable power transmission solutions for diverse industries.

Our heavy-duty Cardan Shaft deliver smooth torque transmission even in high-angle, high-speed applications.

Our Cardan Shafts are widely used in:

• Steel & Rolling Mills
• Cement Plants
• Paper Industries
• Material Handling Equipment
• Textile Machinery
• Mining Equipment
• Construction Machinery
• Agricultural Machinery
• Heavy Industrial Drives

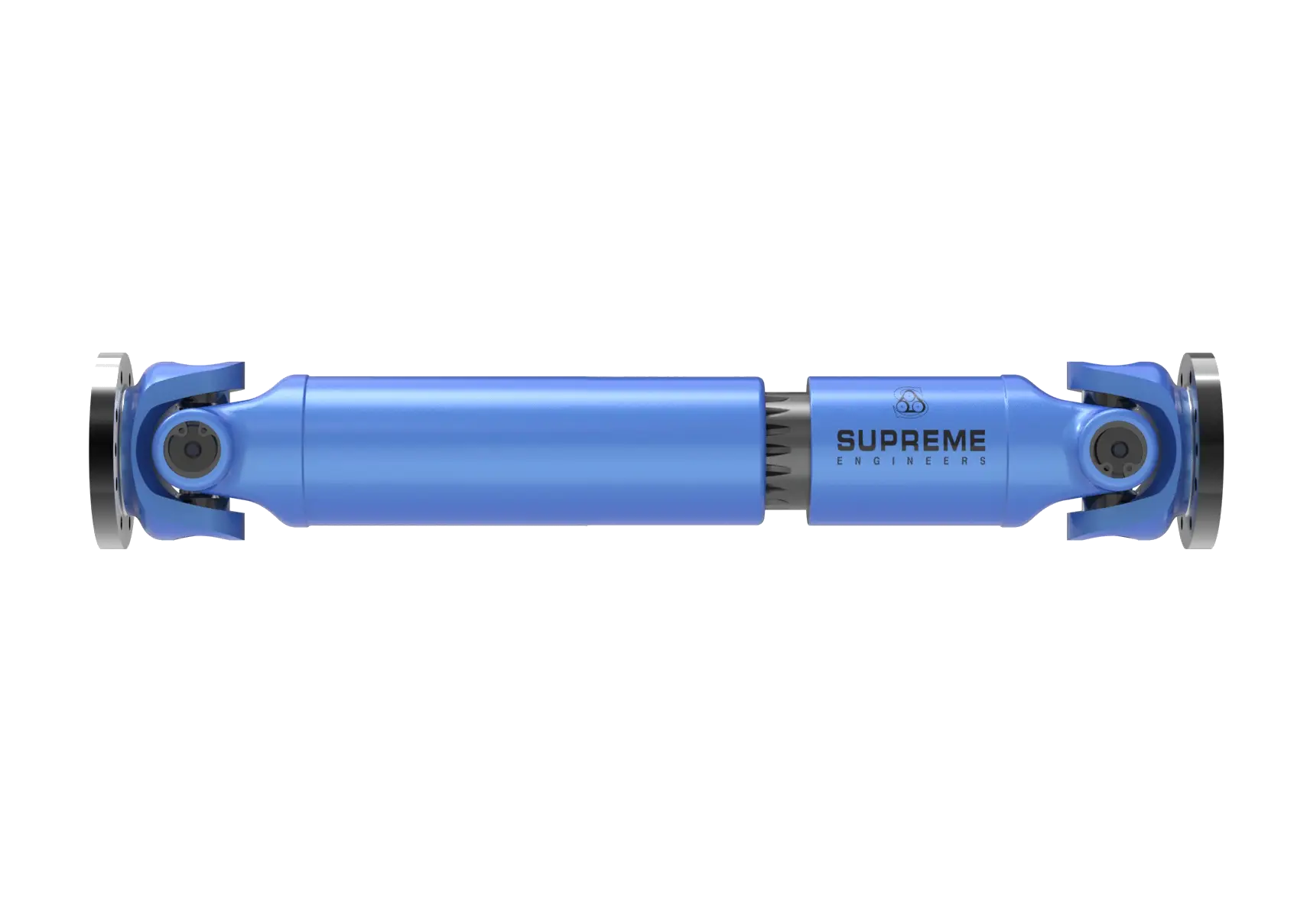

What is a cardan shaft?

A Cardan shaft (commonly known as a drive shaft or propeller shaft) is a mechanical component that transmits torque and rotary motion between two points that are not in a straight line. It features a universal joint at one or both ends, allowing it to flex and maintain power delivery even at changing angles

Application of Cardan Shaft

Cardan Shaft find diverse applications across industries where rotational motion and torque transmission are required between non-aligned shafts.

Heavy Shock Load

• Pulp & Paper Industry
• Steel Rolling & Tube Mills
• Corrugated Box Mfg. Co.
• Sewage Pumping Stations
• Conveyer Primary Drives
• Cement Industries
• Tube Straightening Machines

Medium Shock Load

• TMT Manufacturers
• Vibrating Screens
• Self Loading Transit Mixer
• DTH – Water Well Drilling Rigs
• Road Construction Equip. Machinery
• Auxiliary Drives
• Transfer Trolley Roller Tables

Light Shock Load

• PTO-Pump Drive Propeller Shafts
• Printing & Packaging Industry
• Textile Machinery
• Rip Saw Wood Working Machines
• Balancing Machines
• Diamond Wire Saw Machines
• Farm Equipments & Tractor-Loaders

Advantages of Cardan Shaft

The Cardan Shaft offers a pivotal solution for transmitting torque efficiently between non-aligned shafts.

Here are some Key Advantages of Cardan Shaft

• High Torque Transmission Capacity
• Smooth and Efficient Power Transfer
• Accommodates Angular Misalignment
• Robust and Durable Construction
• Reduced Vibration and Noise
• Reliable Performance in Heavy-Duty Applications
• Low Maintenance Requirements
• Long Service Life
• Suitable for High-Speed Operations
• Customizable for Various Industrial Applications

Cardan Shaft FAQ

1. What is a Cardan Shaft?

Definition: A rotating shaft with universal joints that connects two misaligned shafts.
Other names: Universal joint shaft, propeller shaft, driveshaft.

2. Where is it used?

Automotive: Connects transmission to differential in rear‑wheel and 4WD vehicles.
Industrial machinery: Power transmission in rolling mills, pumps, compressors.
Agriculture: PTO shafts in tractors and harvesters.

3. What are the types?

4. What are common issues?

Velocity fluctuation: Output speed varies at higher angles, causing vibration.
Bearing wear: Needle bearings can brinell if run at near‑zero angle too long.
Misphasing: Incorrect yoke alignment amplifies torsional pulsing.
Snap‑ring failure: From torque reversals or overload.

5. How to maintain a Cardan Shaft?

Lubrication: Regular greasing of needle bearings and sliding sections.
Inspection: Check yoke phasing, spider wear, and spline condition.

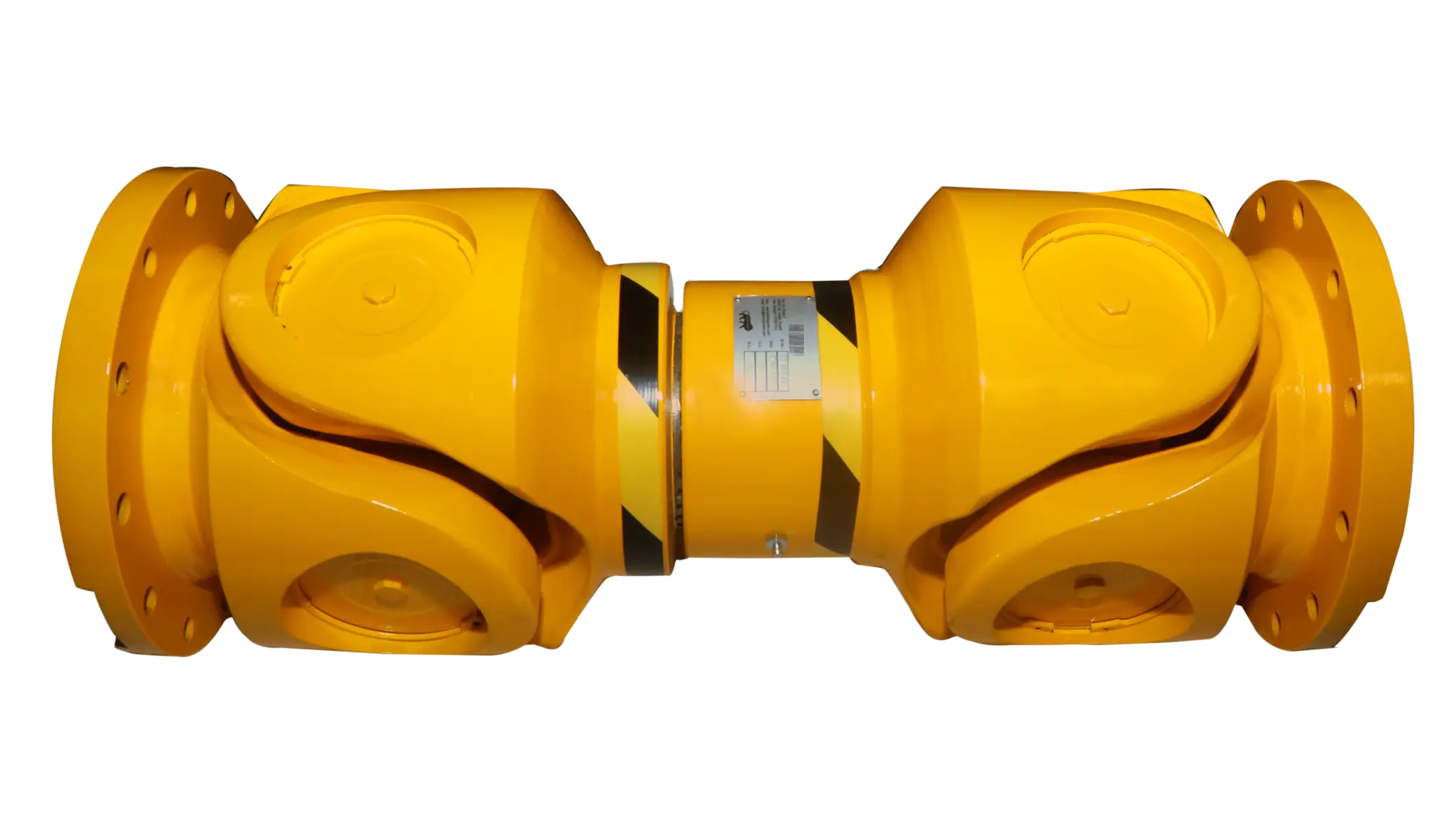

Alignment: Ensure input and output shafts are parallel when using double joints.
Replacement: Worn crosses or bearings should be replaced immediately to avoid driveline damage.

6. Advantages

Flexibility: Handles angular misalignment and length variation.
Durability: Strong enough for heavy torque loads.
Versatility: Used across automotive, industrial, and agricultural sectors.

7. Alternatives

Constant Velocity (CV) joints: Provide smooth rotation at all angles, often used in front‑wheel drive cars.
Flexible couplings: For lighter loads and smaller misalignments.
